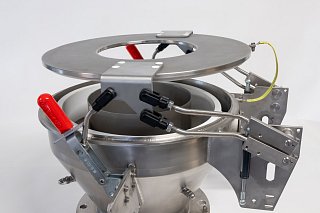

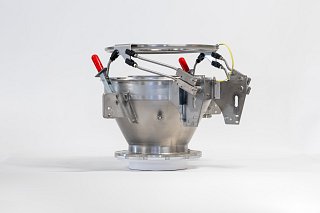

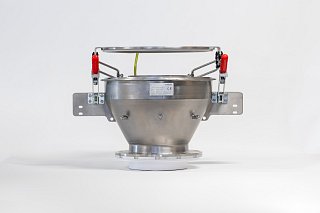

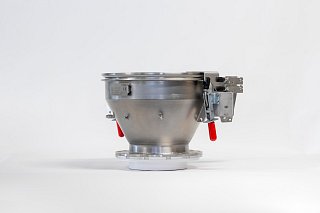

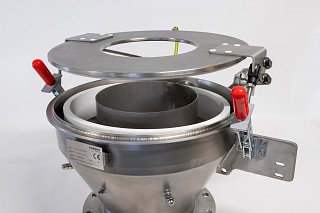

Big Bag connection system AAS / AAS-EF
Emptying
Big Bag connection system AAS / AAS-EF
Big Bag connection system AAS / AAS-EF
Big Bag connection system AAS / AAS-EF
Big Bag connection system AAS / AAS-EF
Big Bag connection system AAS / AAS-EF
Big Bag connection system AAS / AAS-EF
Big Bag connection system AAS / AAS-EF
Big Bag connection system AAS / AAS-EF
Big Bag connection system AAS / AAS-EF
Big Bag connection system AAS / AAS-EF

Big Bag connection system AAS / AAS-EF

Emptying

Description

The AAS outlet connection system from HECHT is a proven big bag connection system for safe and low-dust big bag emptying. It offers a simple and reliable solution for manual opening of the inliner and controlled product emptying - ideal for applications with low containment requirements.

Big bag emptying is performed via an ergonomic system design that combines ease of use and safety. The optimised interface between the big bag and emptying station ensures an efficient product flow, while dust emissions are reduced to a minimum.

The AAS is particularly suitable for industrial applications where an economical yet safe big bag emptying station is required. The stable design enables easy handling, even with powders or abrasive materials that are difficult to process.

With the AAS discharge connection system, you are opting for a tried-and-tested solution for big bag emptying - reliable, functional and flexible in use.


Customer benefits

Outlet connection system (AAS):

  • Easy handling thanks to two-hand lever technology
  • Interchangeable inner tube enables adaptation to big bags with different outlet diameters
  • Dedusting possible via suction nozzle
  • Evacuation of the big bag possible
  • Various sizes and connection variants such as clamp, nozzle or flange outlet
  • Subsequent upgrade to AAS-EF with filter retrofit kit

Outlet connection system with integrated dedusting filter (AAS-EF)

  • Integrated dedusting filter eliminates the need for an external filter
  • Space and cost savings by eliminating the external filter
  • No product loss due to escaping dust
  • No product carryover into the extraction lines
  • No cross-contamination
  • Low cleaning effort
Enquire now

Handling AAS / AAS-EF

Technology

Outlet connection system (AAS):

  • Discharging by simply slipping the tied big bag outlet over the inner pipe
  • Secure fastening using two-hand lever technology and sealing flange
  • Swirled up product is collected between the inner and outer pipe and fed back into the product flow
  • Dedusting and evacuation of the system possible after discharging
  • Outlet connection system with integrated dedusting filter (AAS-EF)

Separation of the product in the connection system

  • The integrated dedusting filter enables the separation of dusty and dust-free air
  • Prevents product from entering the clean gas side or the extraction system
  • Eliminates time-consuming cleaning of the dedusting device
  • Virtually no product loss or carryover into the extraction system

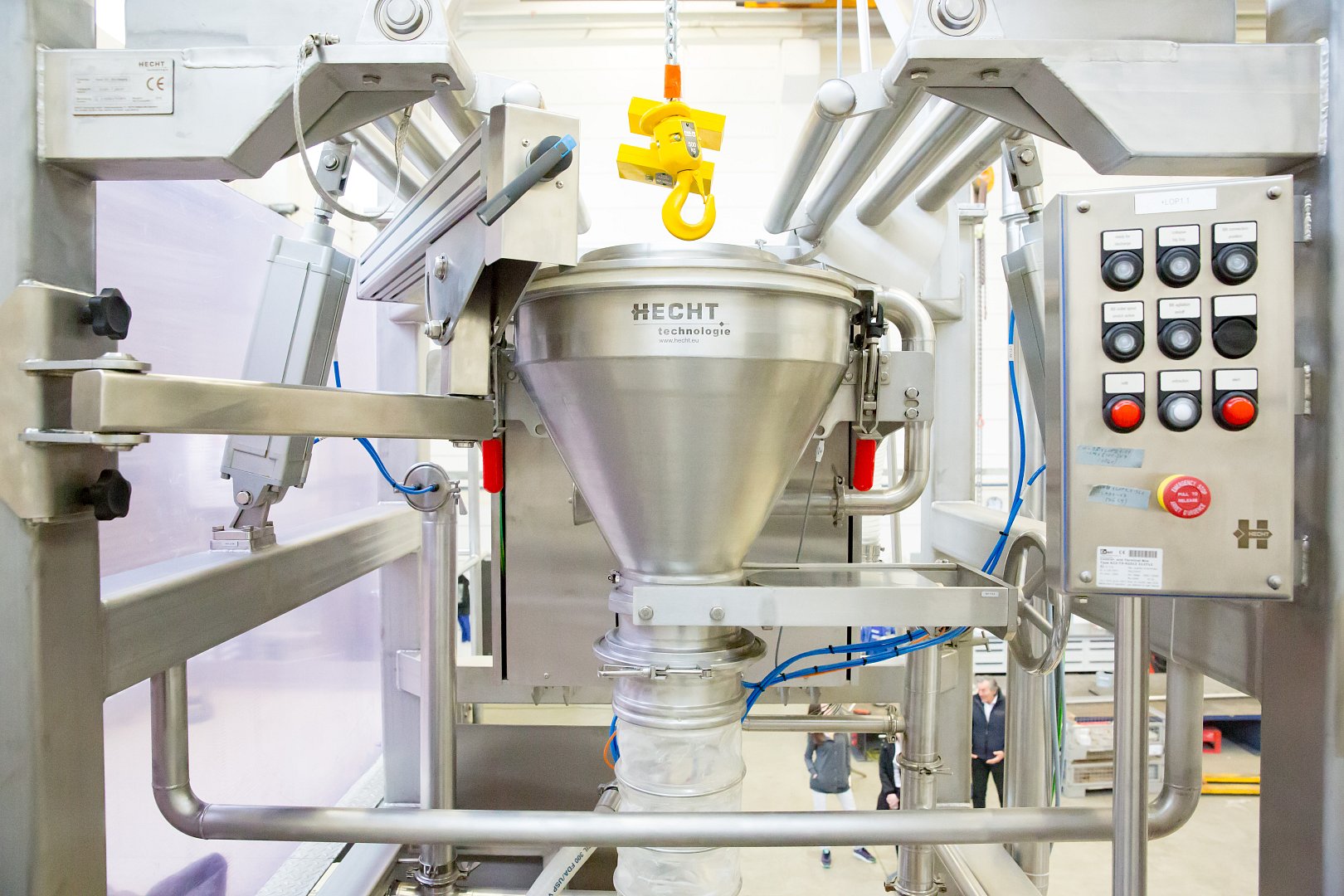

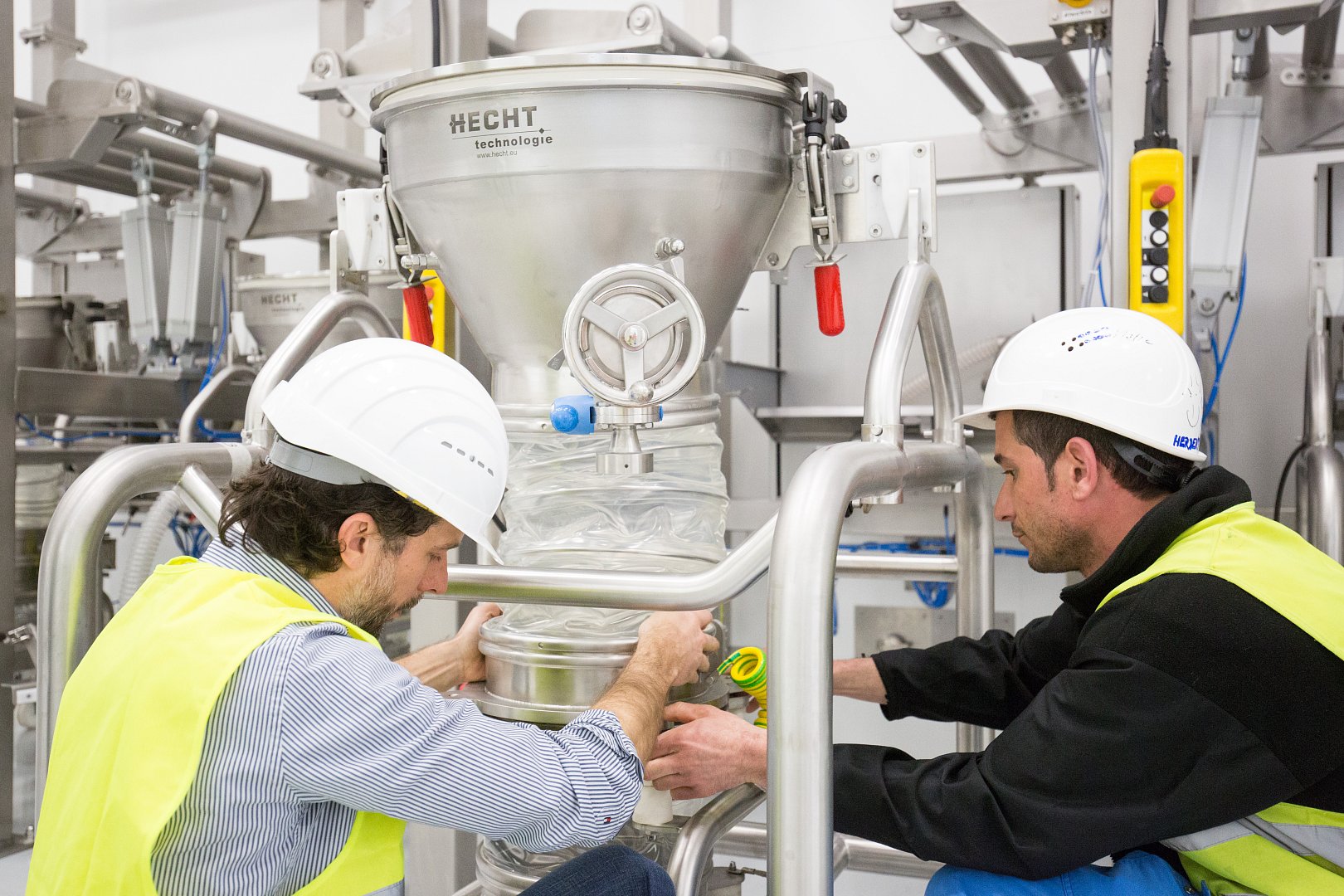

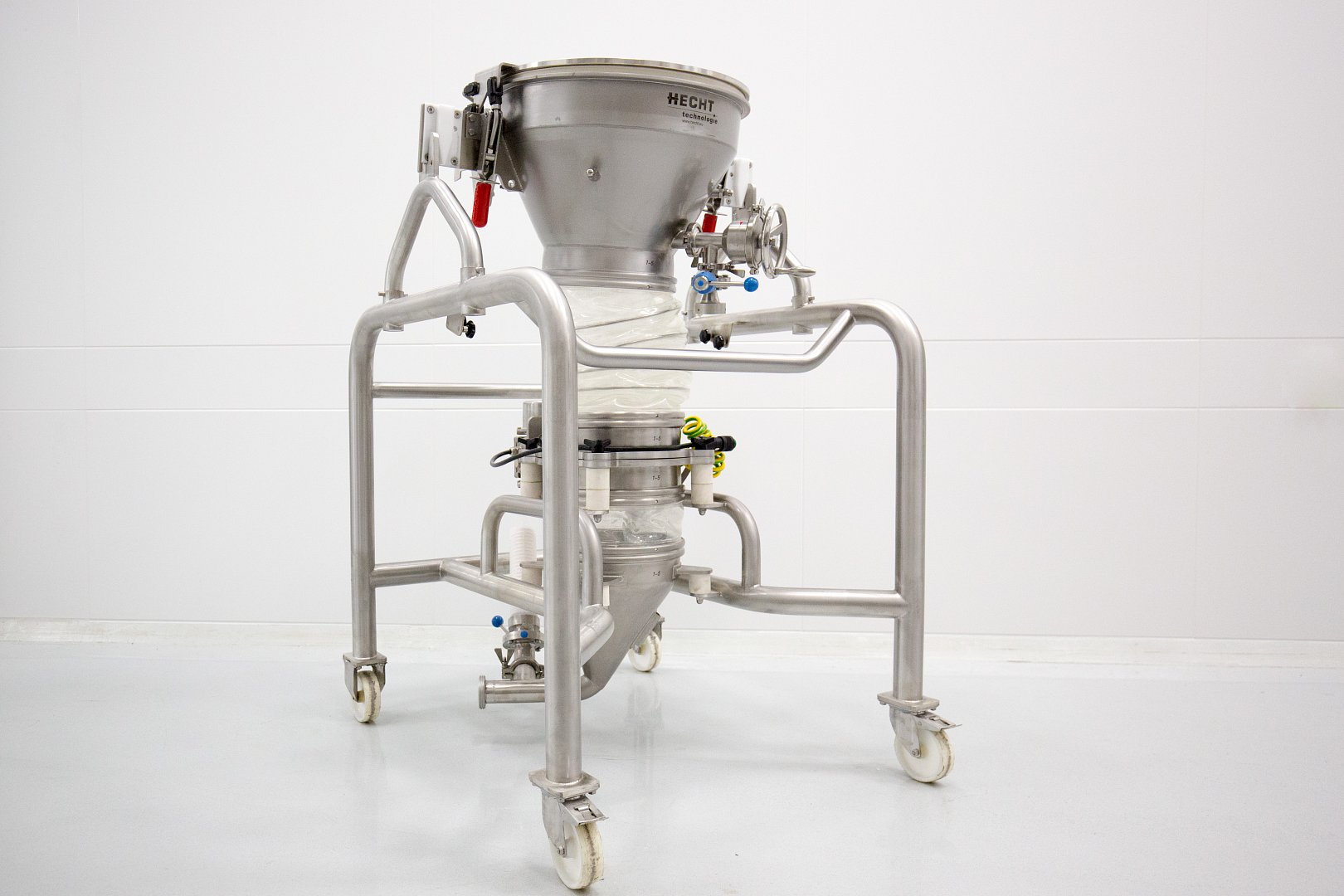

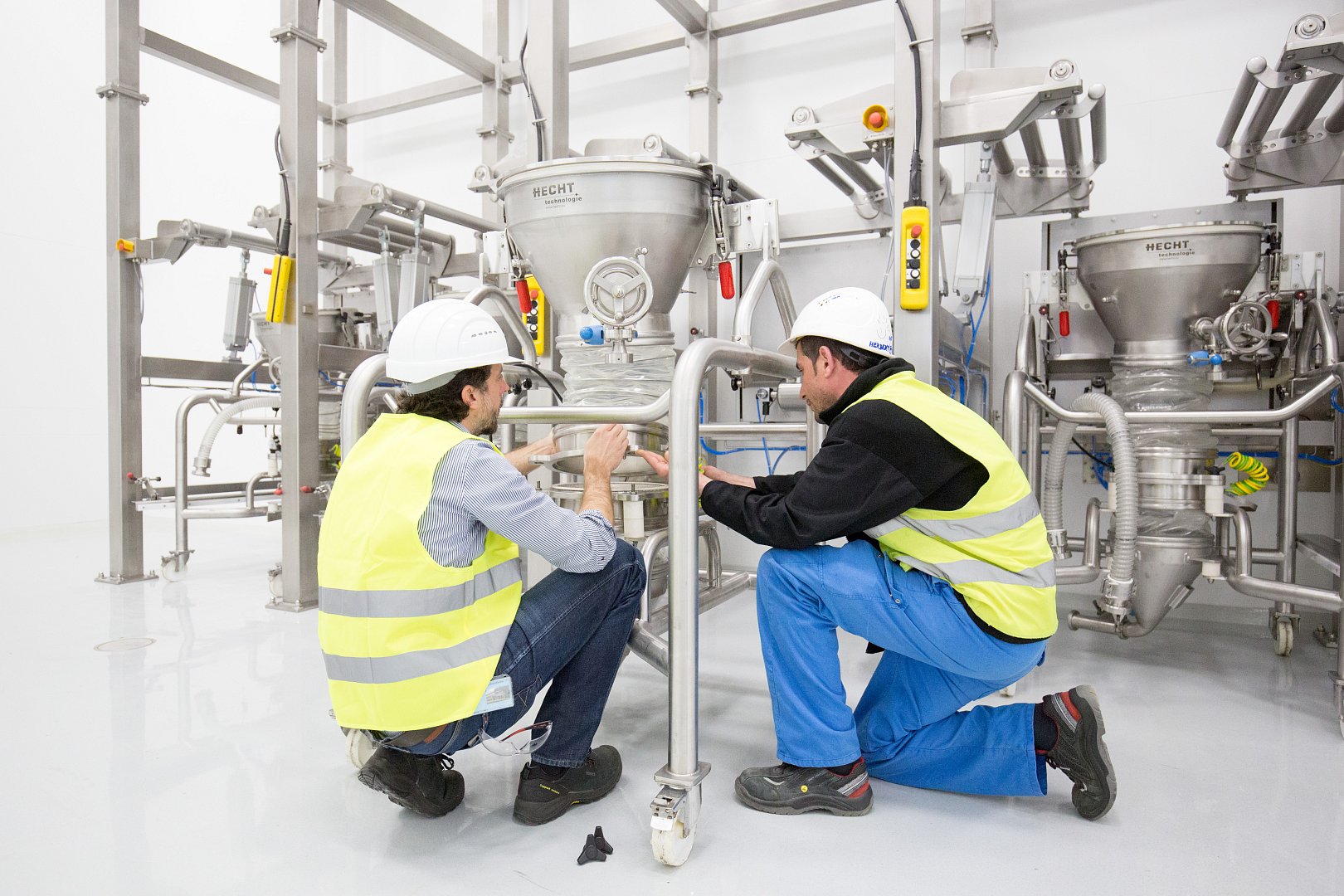

AAS / AAS-EF im Einsatz
