Emptying
OEB Level 5

Description

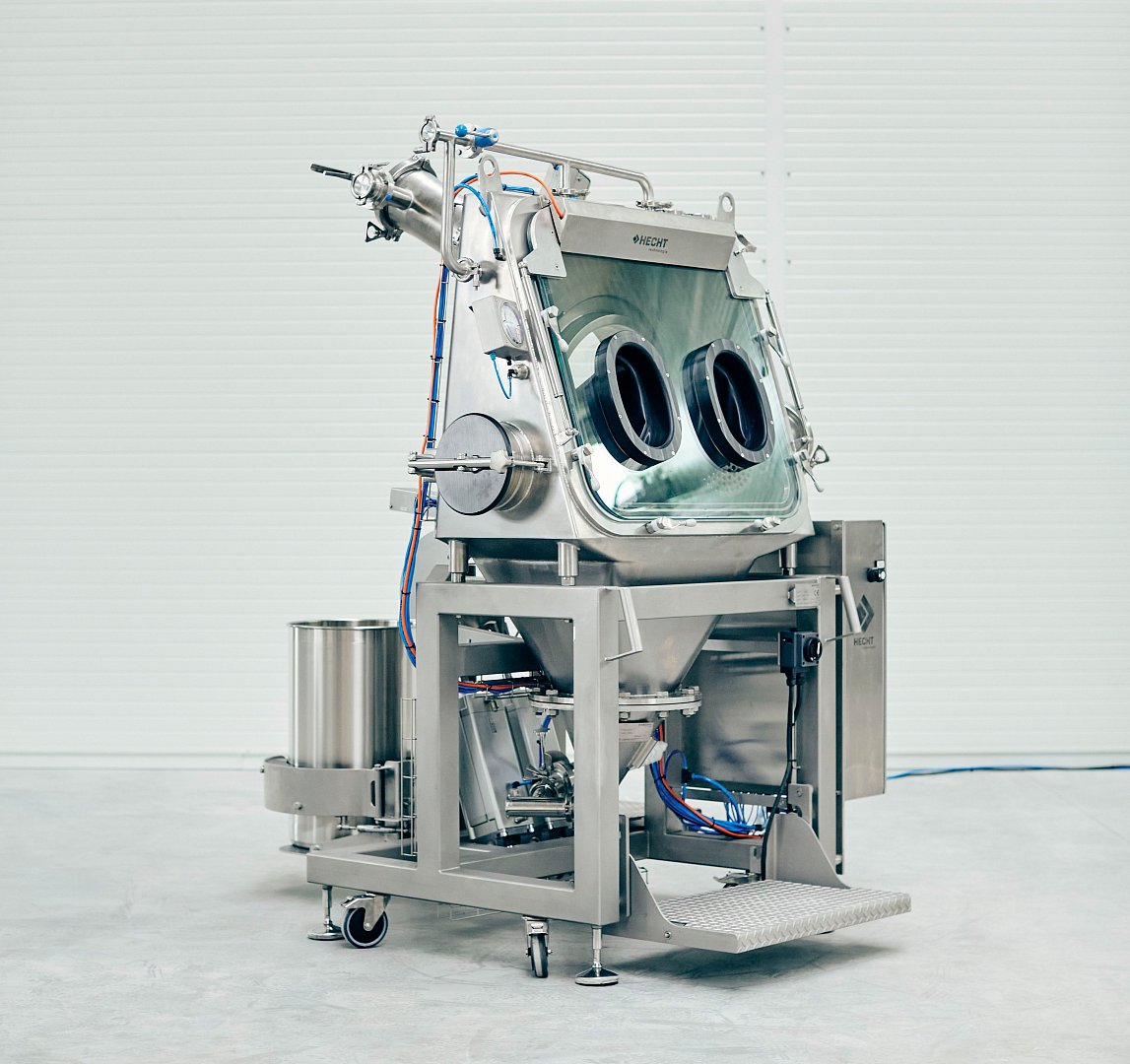

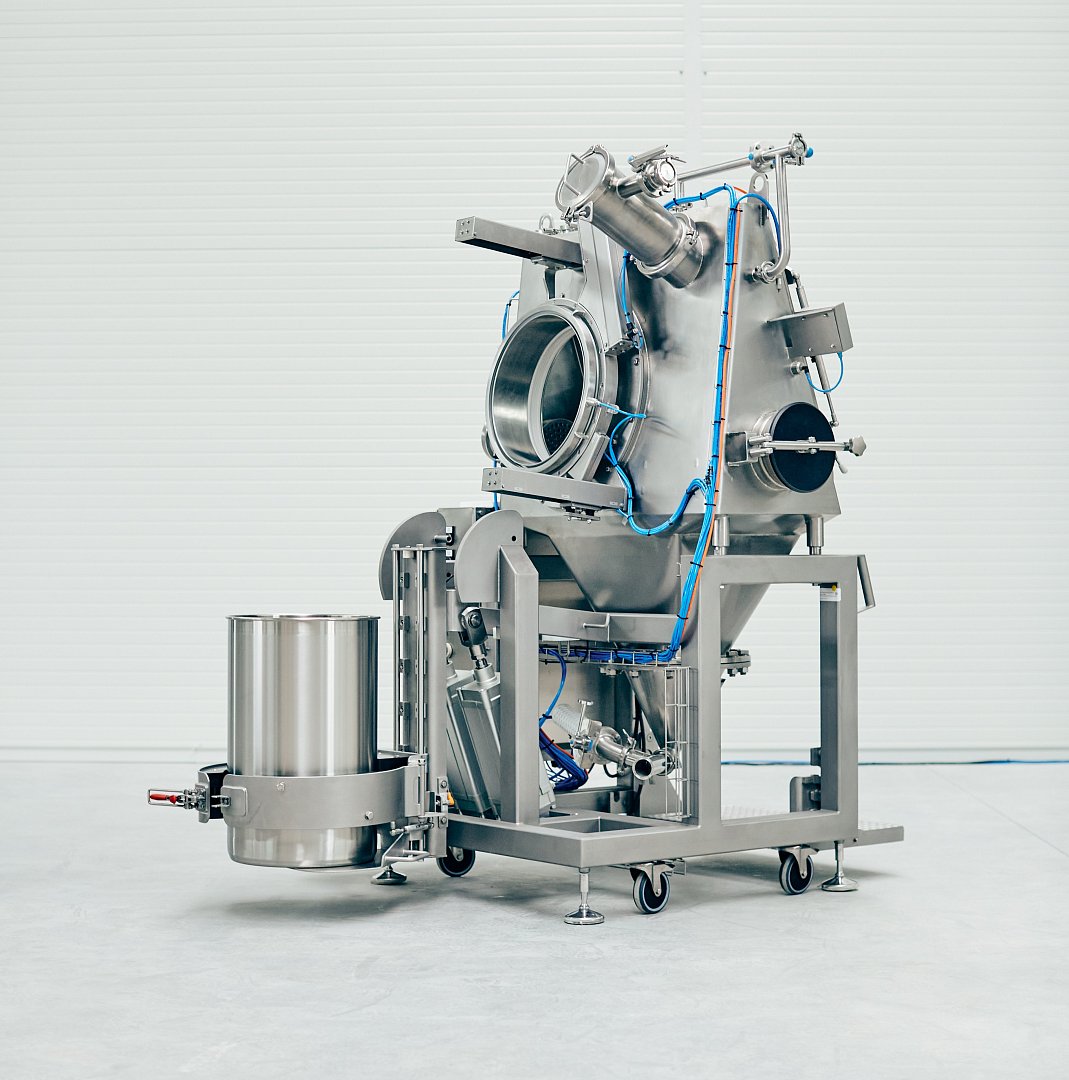

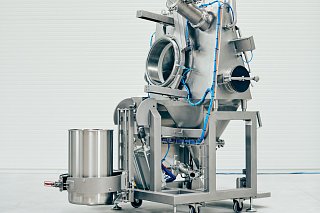

The containment drum emptying system with tilting device and "Easy" port type CFE-K-EC from HECHT Technologie is an innovative drum emptying system that has been developed for the low-contamination transfer of drums with inliners up to OEB 5. As an experienced supplier in the field of drum emptying, HECHT offers a solution that combines efficiency, ergonomics and safety. With the new EC-Port from the "Easy Connect" family, drums can now be changed much more easily and ergonomically. The new technology enables drums to be changed with virtually no consumables. The increased user-friendliness under the highest containment conditions are strong arguments in favour of this technology. The tipping device for drums allows them to be docked effortlessly. The products delivered in drums are additionally wrapped in film, also known as an outer liner (secondary liner), to protect the operating personnel and the product. This drum emptying system is ideal for sensitive processes where dust and product leakage must be avoided. The CFE-K-EC is therefore an ideal solution for customers who are looking for precise technology with a high level of user-friendliness in the field of containment drum emptying.


Customer benefits

  • Protection during drum emptying up to OEB 5, OEL µg/m³
  • Observation of the product flow
  • Product handling with the aid of gloves for easy operation
  • Smooth and contamination-free changing of gloves
  • Higher degree of automation thanks to the EC port
  • Precise positioning and docking of the drum thanks to stops and guides
  • Emptying of different drum diameters
  • Further transport by means of a downpipe or downstream pneumatic conveyor
  • WIP integration possible at any time
  • Nitrogen flushing
  • Hygienic design or ATEX version available
  • Discharge through optional empty bag discharge
  • Various surfaces and materials
  • Can be integrated into many existing systems
  • Significant reduction in consumables
  • Fast, simple and safe handling

Containment level

OEB Level 5
Enquire now

Handling CFE-K-EC

Um sich an dieser Stelle das eingebettete YouTube Video anzeigen zu lassen, müssen Sie der Nutzung von "Externen Medien" zustimmen.

Alternativ können Sie das Video auch hier direkt bei Youtube in einem neuen Fenster öffnen.

Um sich an dieser Stelle das eingebettete YouTube Video anzeigen zu lassen, müssen Sie der Nutzung von "Externen Medien" zustimmen.

Alternativ können Sie das Video auch hier direkt bei Youtube in einem neuen Fenster öffnen.

Technology

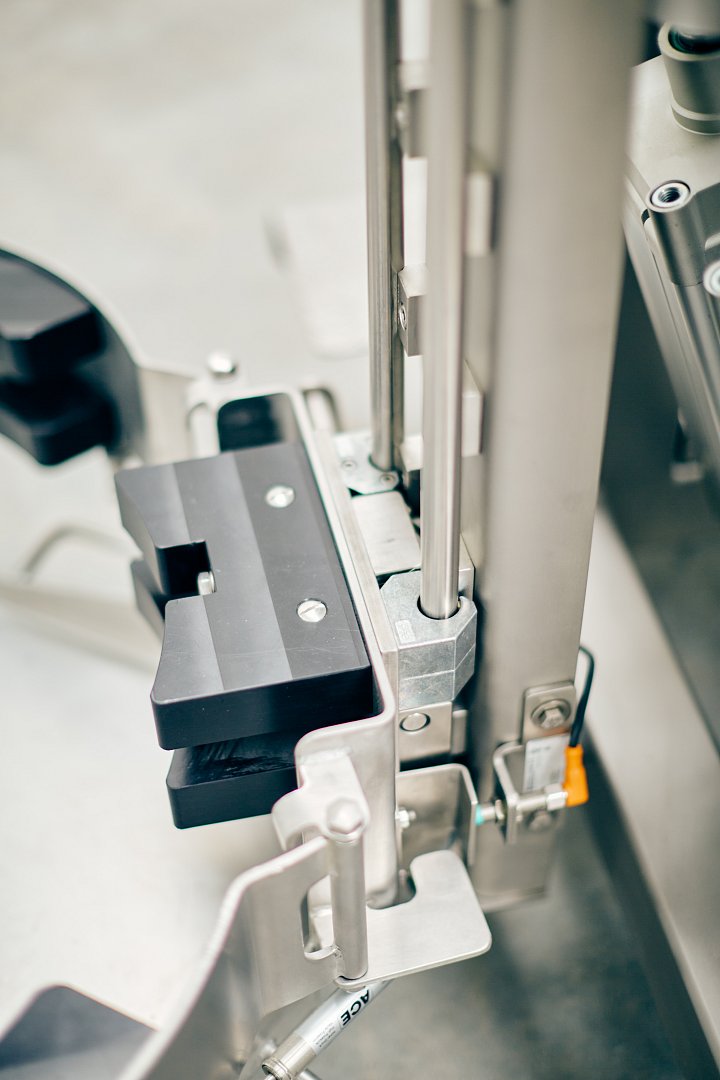

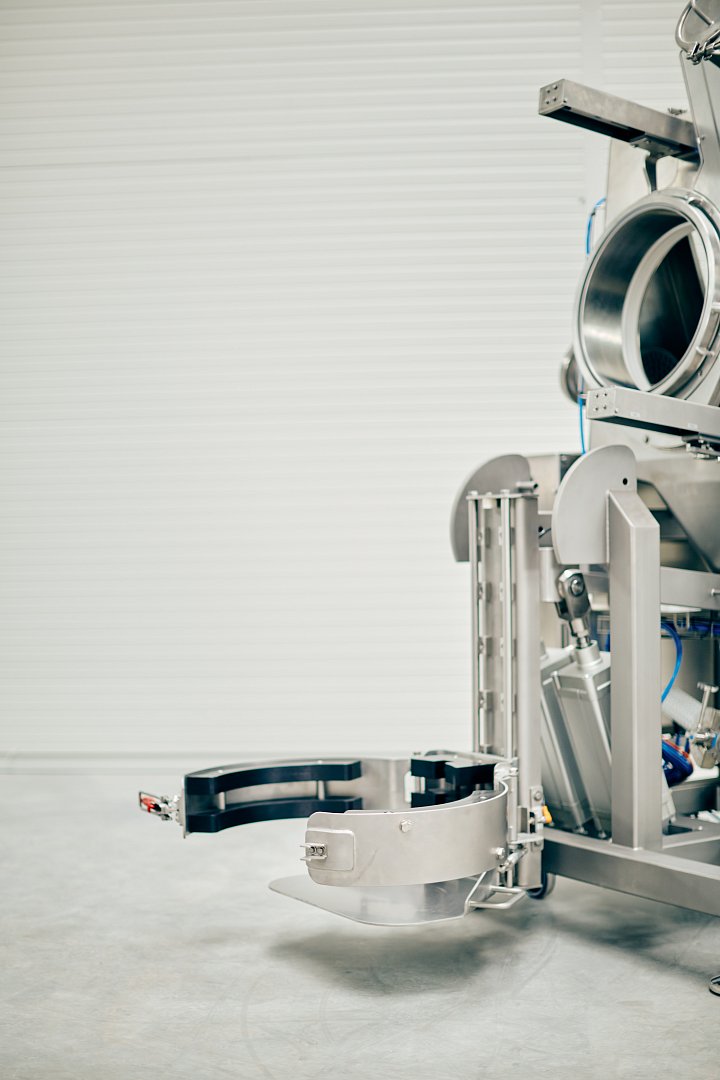

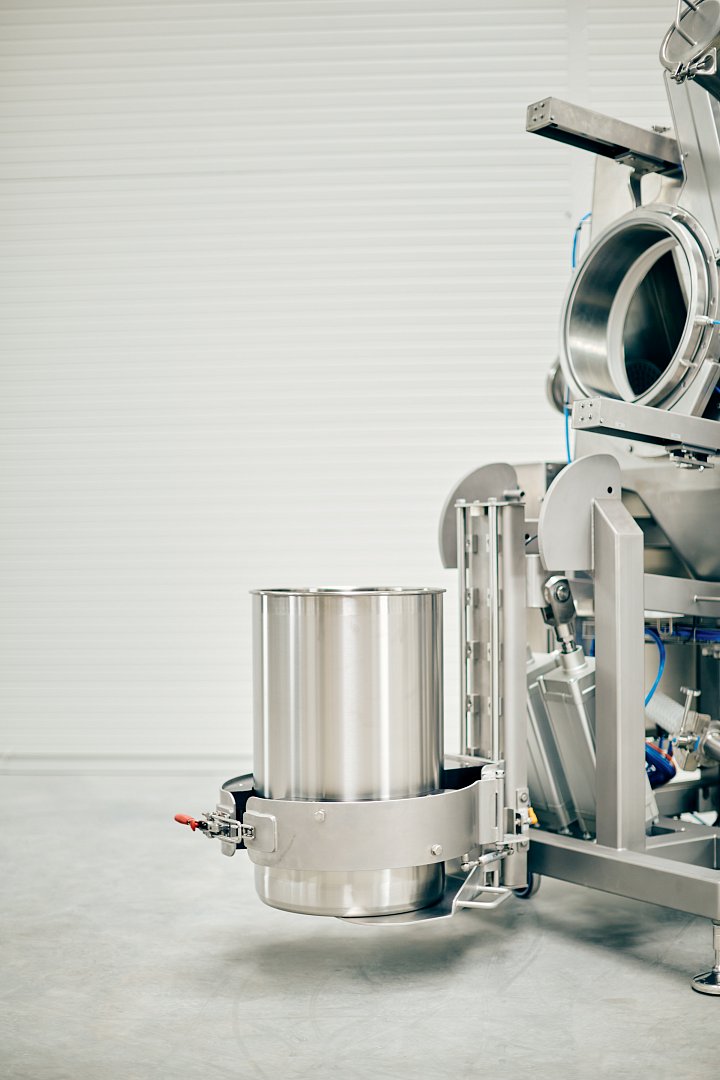

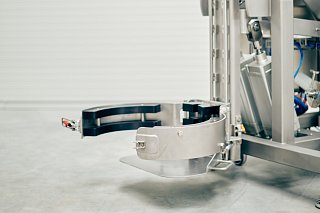

  • Drum is lifted by a special lifting device on the back of the glovebox

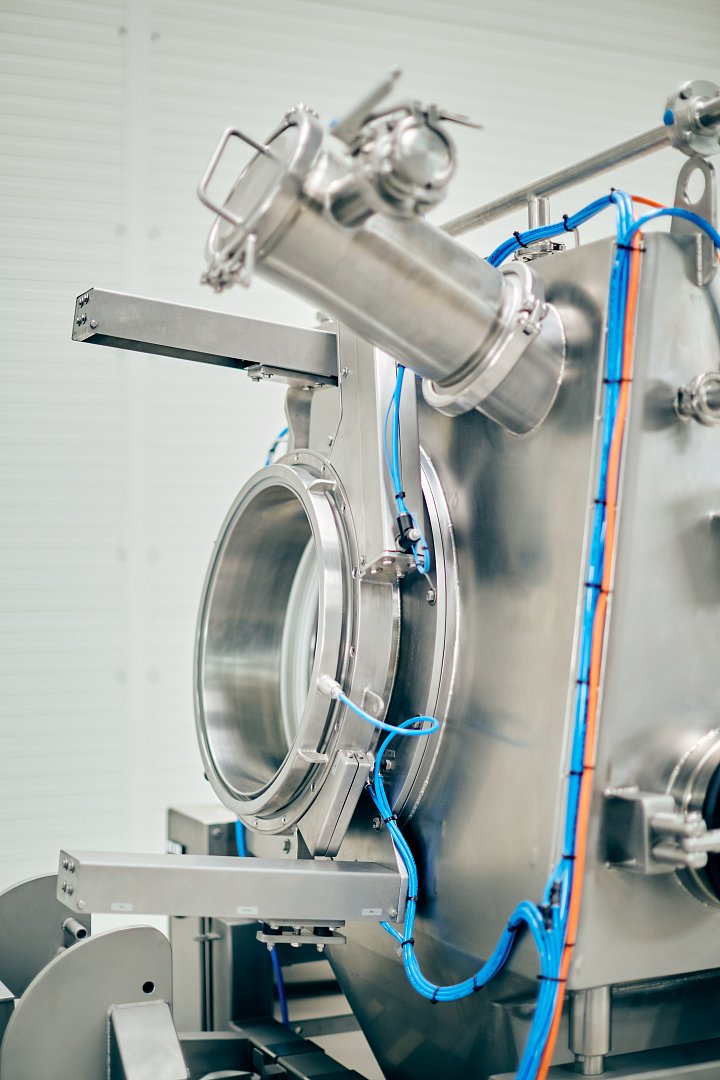

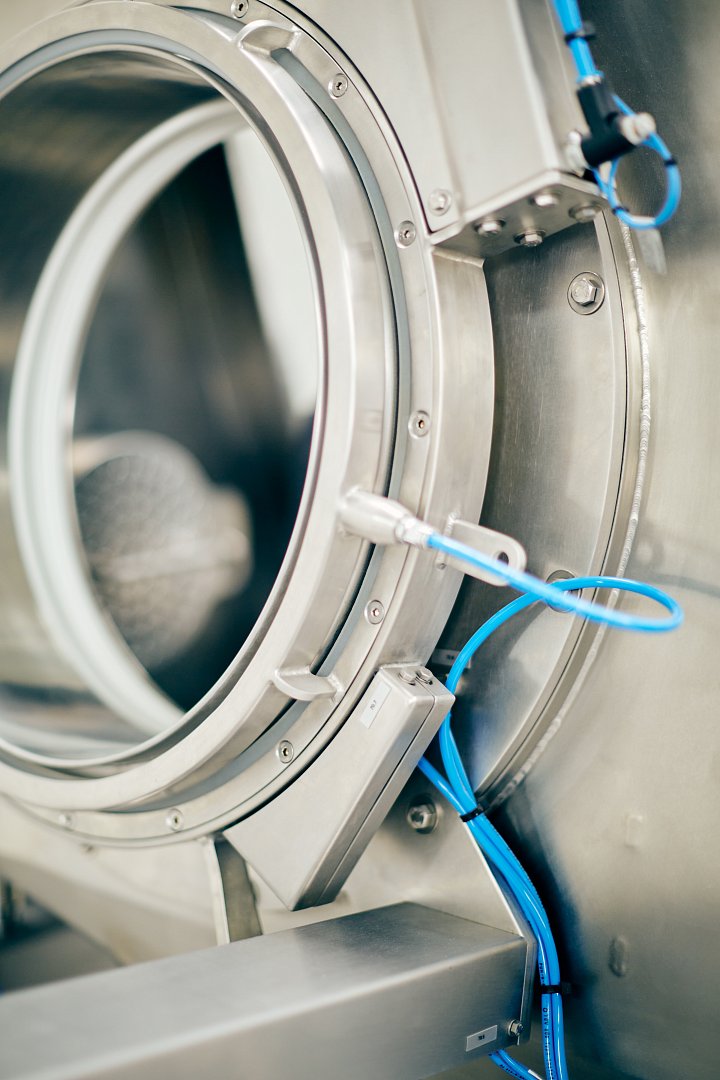

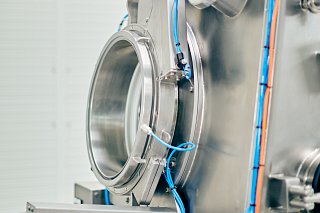

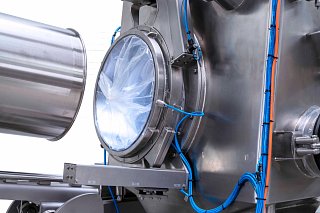

  • The drum is docked onto the designated "Easy" port
  • In the initial position, the glovebox is closed by a residual liner (shower cap)
  • Port is opened, shower cap seals the port via a clamping device
  • Outer liner is pulled over the liner connection
  • Port is closed and the new secondary liner is automatically fixed in place
  • Showercap is pulled off via the glovebox
  • Drum is pushed into the glovebox and raw material is emptied
  • Bulk material is transported to the next process step by gravity

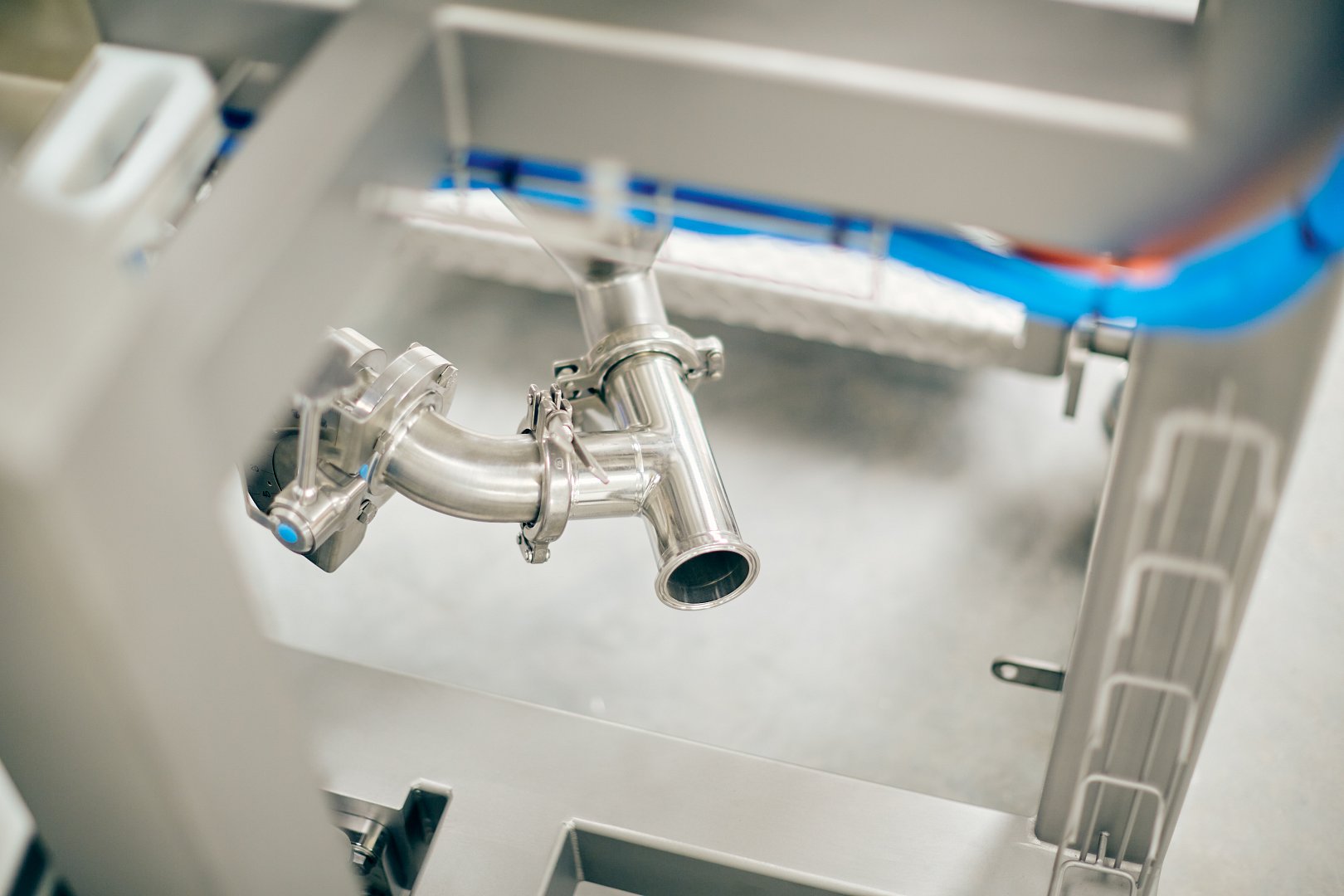

  • Optional suction shoe at the end of the hopper can be integrated for vacuum conveying
  • After emptying, the secondary liner is tied and separated twice with the HECHT containment sealing system
  • Sealing technology protects the isolator and product from unwanted product leakage or entry
  • Cycle can start again, new drum can be connected
