EWI - Disposable isolator

Disposable technology

OEB Level 5

Description

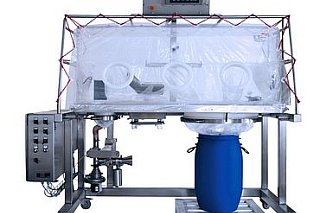

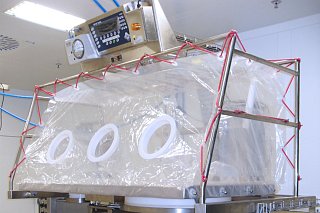

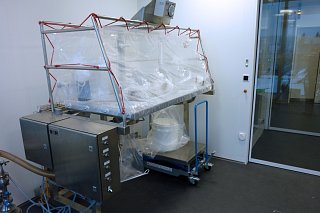

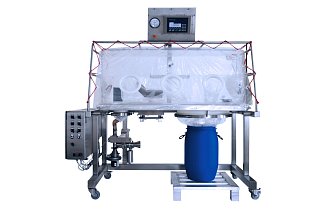

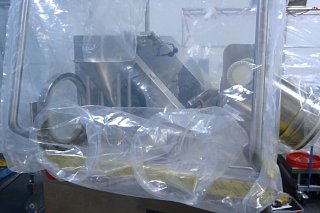

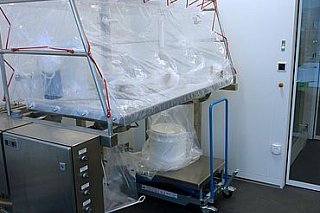

Safe and contamination-free dosing, sampling, decanting and weighing of small quantities of highly active or highly hazardous substances are just a small selection of customer-specific operations that can be realised with the disposable isolator (EWI) from HECHT. The EWI is a completely enclosed film system that can be operated using gloves. It protects people and/or products by using a flexible film and various customised connection adapters for a wide variety of containers (drums, bags or cartons, etc.). There is no need for time-consuming cleaning and cleaning validation. Depending on the application, the number of ports for infeed and outfeed as well as the gloves for operation or connections to dryers, mixers, granulators, etc. are individually determined according to customer-specific requirements. are determined individually according to customer-specific requirements.

A special option of the EWI is its patent-pending weighing system. The active weighing technology is located outside the isolator and is therefore not contaminated. Only a weighing pan is located inside. A wide variety of bulk materials can be weighed to an accuracy of 2g.

Customer benefits

Safety and security

Primary containment through the protective film
Safe filling of small quantities and weighing
Operator and product protection through negative and positive pressure
Leak test for each film insulator
High containment OEL: up to 1µg/m³ (OEB5) - in the laminar flow cabin: up to 200 ng/m³ (OEB6)
No cross-contamination

Cost savings

Lower purchase and maintenance costs
Lower cleaning costs
No costs for cleaning validation
Short changeover times

Flexibility

Can be customised to different containers and tasks
Process control can be adapted to OEL requirements
Optional inertisation
Mobile, location-independent area of application
Quick product change due to disposable technology, short set-up times
Various containers with liner can be used
Different film insulators can be varied within one frame

Containment level

OEB Level 5

Enquire now

Technology

System consists of a fixed and a flexible part
Fixed part: stainless steel frame with work surface, suction and holder for disposable foil isolator
Control system adaptable to customer-specific OEL requirements: from simple ventilation to negative pressure operation with or without inertisation

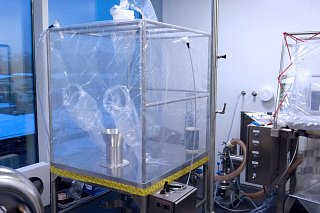

EWI enables various processes, various port designs for customised manipulations (e.g. magnetic stirrers, weighing systems, power/air supply)
The number and type of inputs/outputs and gloves are variable depending on the process requirements
Flexible part: disposable foil insulator (PE, PU, also conductive) is quickly hooked into the frame
Different versions of the disposable foil isolator possible, all parts in contact with the product fulfil pharmaceutical and food-relevant requirements
Product handling takes place via gloves in the disposable film isolator
Disposable film isolator is hooked in, connections connected, pneumatic roll-out seals or vacuum plate fix it in place
Packs are inserted or connected to the connection port, outer liner is fixed to the connection port
Material is removed and processed via gloves, the container and isolator remain closed
After processing, containers are removed after double setting and separation of the film, both remain closed
Disposable film insulator can be quickly replaced and disposed of, no cleaning/decontamination required
EWI is suitable for handling bulk goods from small containers with one or two liners
Station is flexible, transportable (optionally on castors), requires only electricity (230V) and compressed air (6 bar)
