LBK-EC - "Easy Connect" liner filling head

Filling

OEB Level 4

Description

The LBK-EC "Easy Connect" liner filling head is the optimum filling solution for drums and big bags under containment conditions up to OEB 4. Developed for dust-free filling of containers with inliners, the containment filling head impresses with maximum safety, ease of use and efficiency.

Thanks to innovative technology, the Easy Connect filling head requires virtually no consumables such as O-rings. The intuitive 3-button operation, familiar from the LAS-EC, minimises operating errors and takes the strain off your staff.

The LBK-EC ensures controlled, clean product transfer and a safe working environment - ideal for sensitive applications with toxic or highly active powders.

Customer benefits

Pneumatic or electro-pneumatic control with only 3 buttons
Docking, sealing and undocking
Virtually no consumables such as O-rings
Quick container change
Pneumatic containment sealing and automatic liner fixation
Access port with endless film port
Containment level up to OEB 4
WIP and CIP equipment optionally available
Ergonomic handling
Patent pending

Containment level

OEB Level 4

Enquire now

Handling LBK-EC

Um sich an dieser Stelle das eingebettete YouTube Video anzeigen zu lassen, müssen Sie der Nutzung von "Externen Medien" zustimmen.

Alternativ können Sie das Video auch hier direkt bei Youtube in einem neuen Fenster öffnen.

Technology

Drum is lifted by a special lifting device on the back of the glovebox
The drum is docked onto the designated "Easy" port
In the initial position, the glovebox is closed by a residual liner (shower cap)
Port is opened, shower cap seals the port via a clamping device
Outer liner is pulled over the liner connection
Port is closed and the new secondary liner is automatically fixed in place
Showercap is pulled off via the glovebox
Drum is pushed into the glovebox and raw material is emptied
Bulk material is transported to the next process step by gravity
Optional suction shoe at the end of the hopper can be integrated for vacuum conveying
After emptying, the secondary liner is tied and separated twice with the HECHT containment closure system
Sealing technology protects the isolator and product from unwanted product leakage or entry
Cycle can start again, new drum can be connected

LBK-EC in use

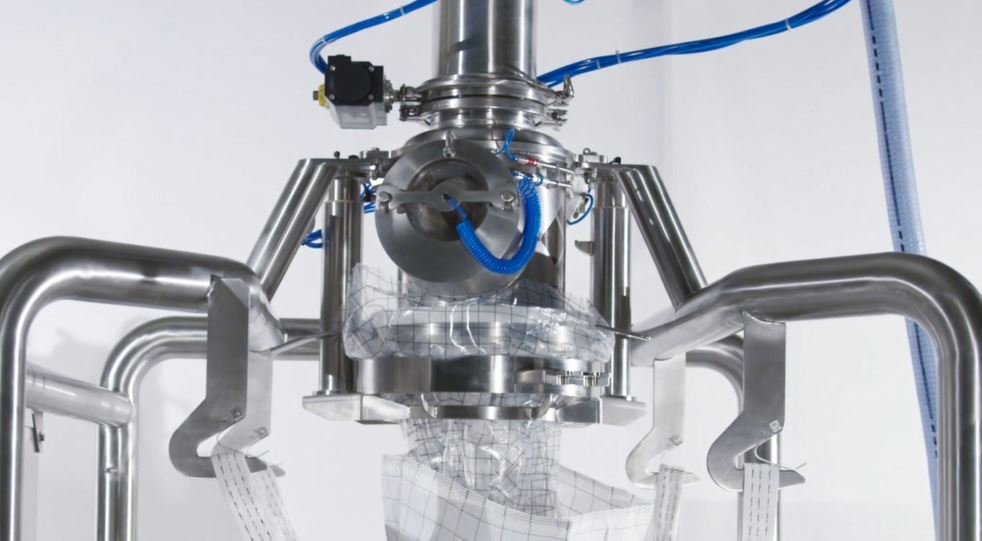

LBk-EC Big Bag docking

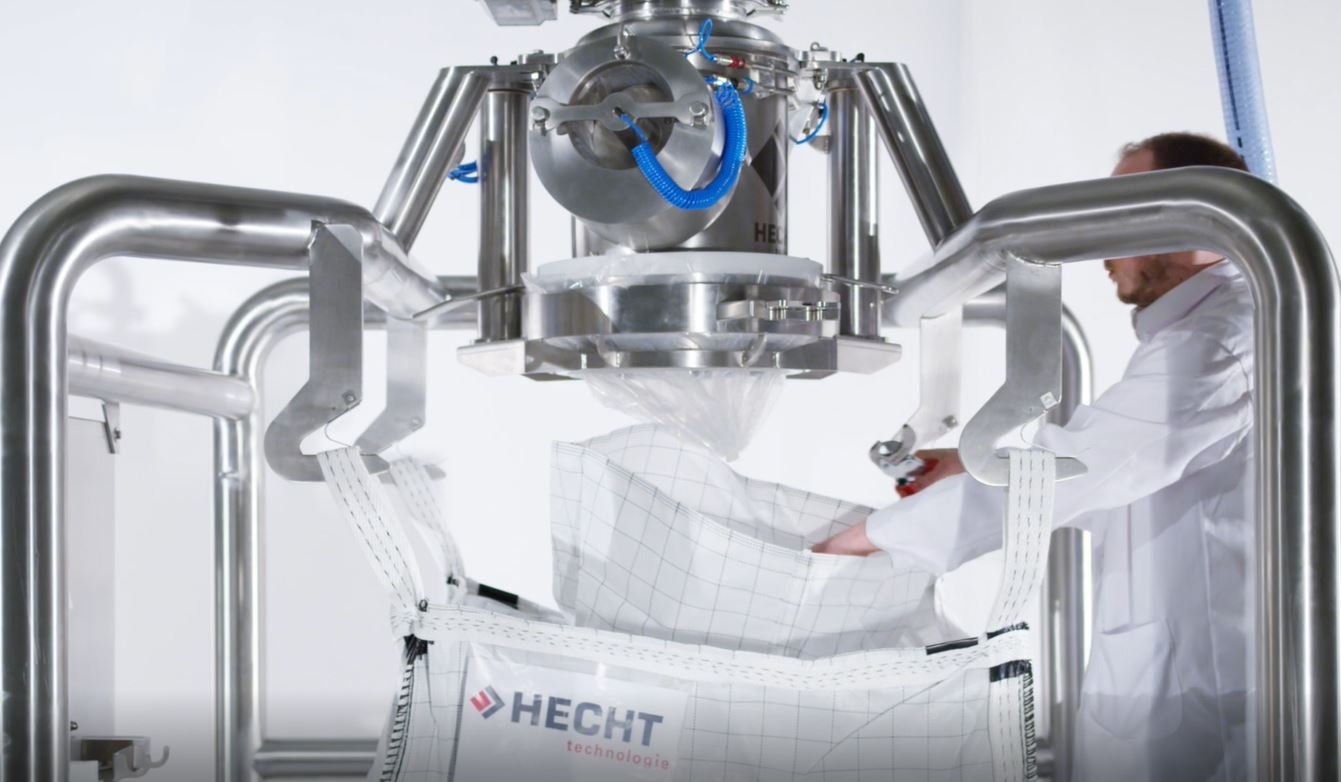

Undock LBK-Ec Big Bag

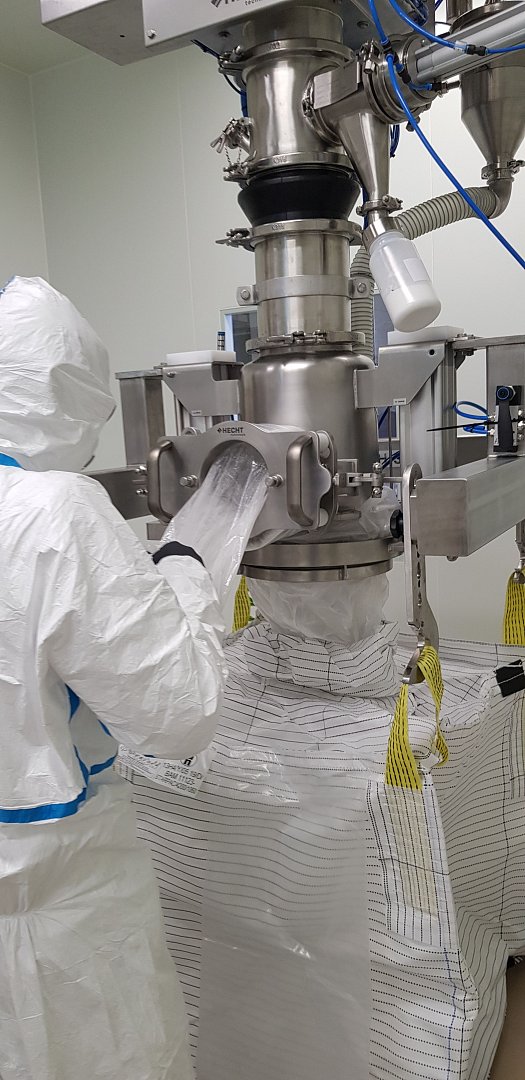

Big bag filling LBK-EC

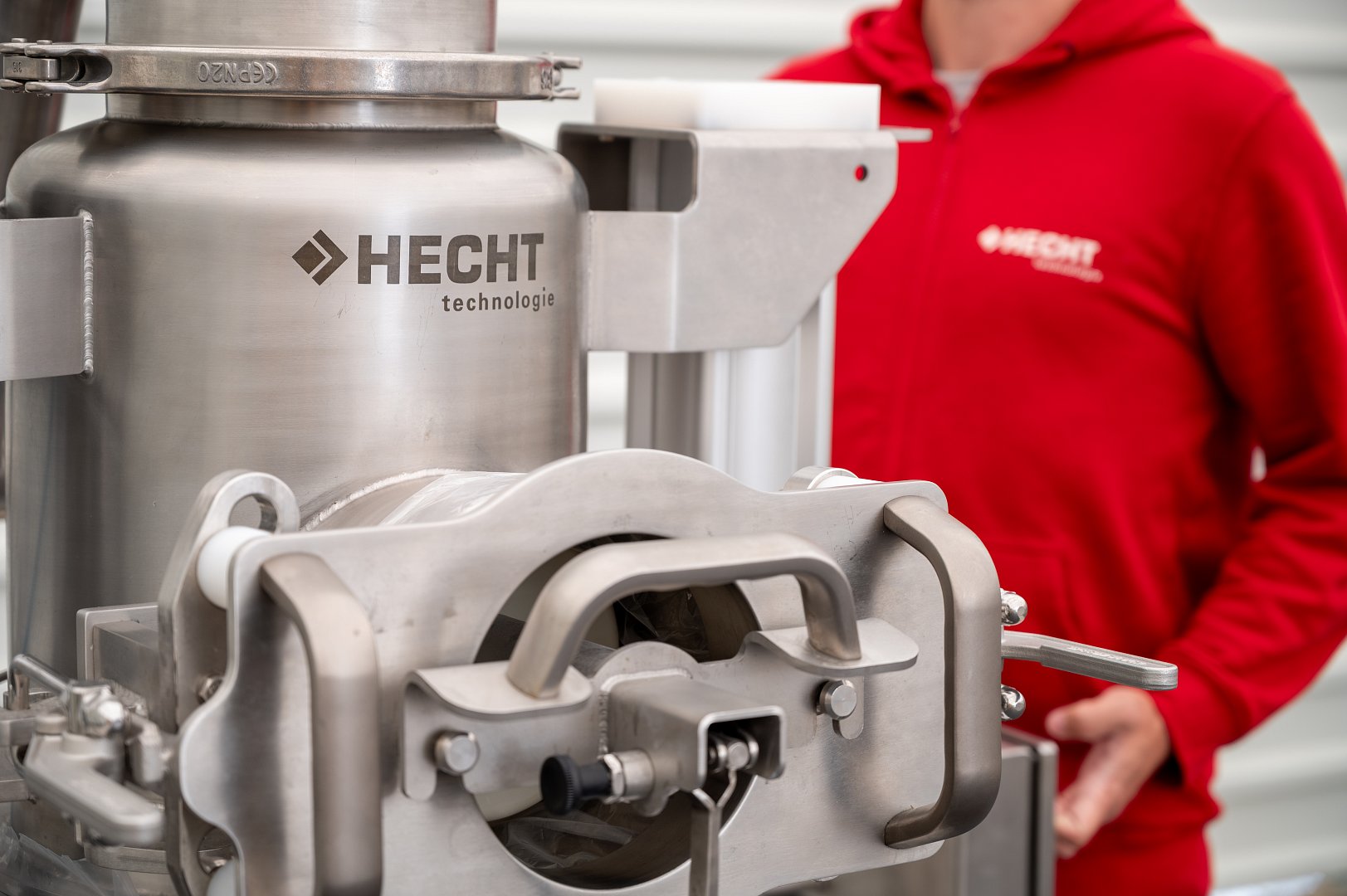

LBK-EC
