Discharging

Loading Gears

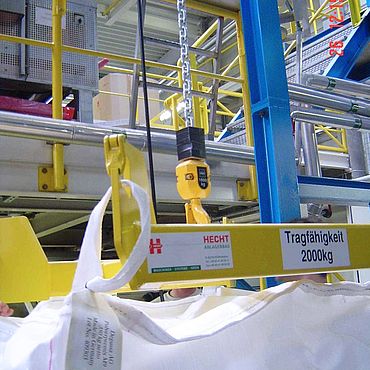

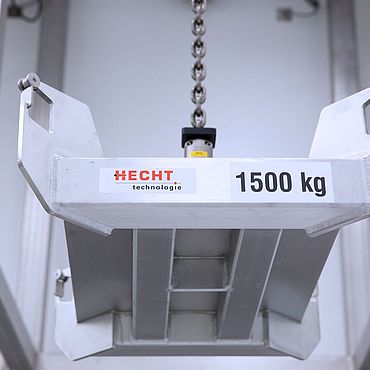

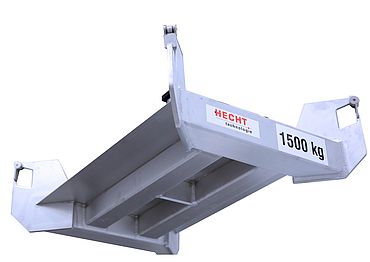

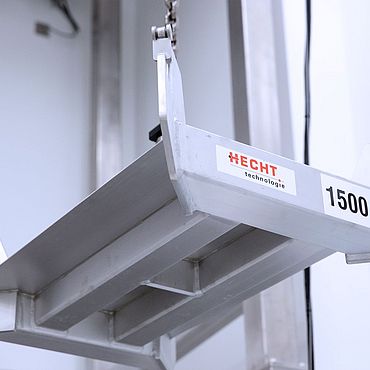

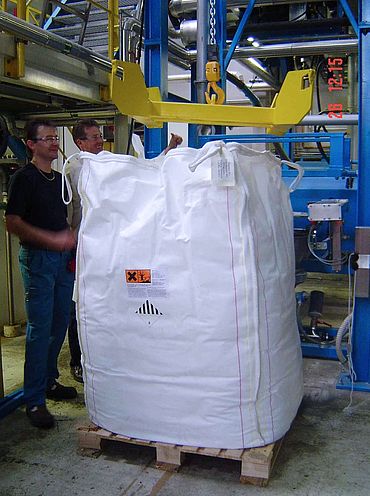

A loading gear with chain hoist mounted to a runway track is the standard lifiting device to move FIBCs for applications in the pharmaceutical, chemical or food industry.

  • Standard version for mounting of FIBCs (with loop holders) to hooks with or without winding drum
  • Additional version with 2 hooks for stabilization of the FIBCs during the transport

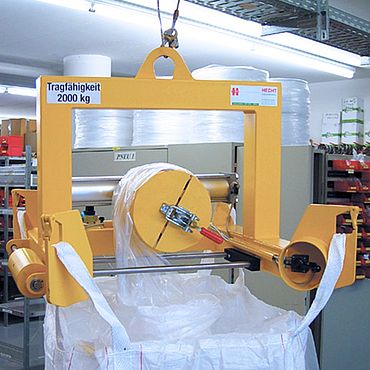

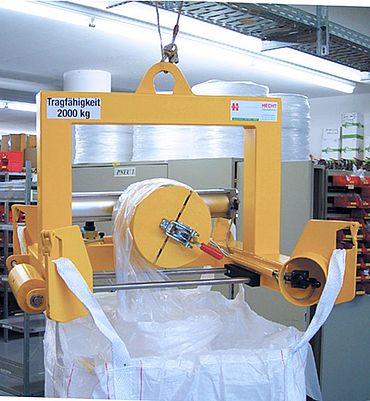

  • Optional winding drum for tightening the inner liner of the FIBC

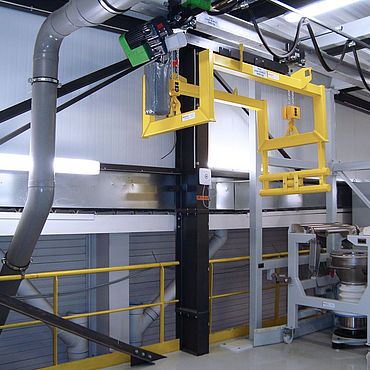

  • Loading gear for restricted room and construction height
  • Loading capacity: 1.000 or 2.000 kg
  • Various EX-designs
  • Electric or pneumatic drive system
  • Lifting device needed to safely lift and position FIBCs
  • Ensures correct positioning to mount the connection system for discharging
  • Supports product discharge by tensioning the FIBCs
  • Prevents twisting during the discharging process
