Discharging

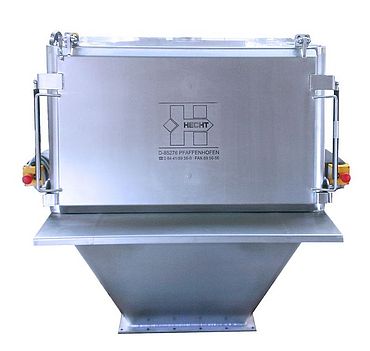

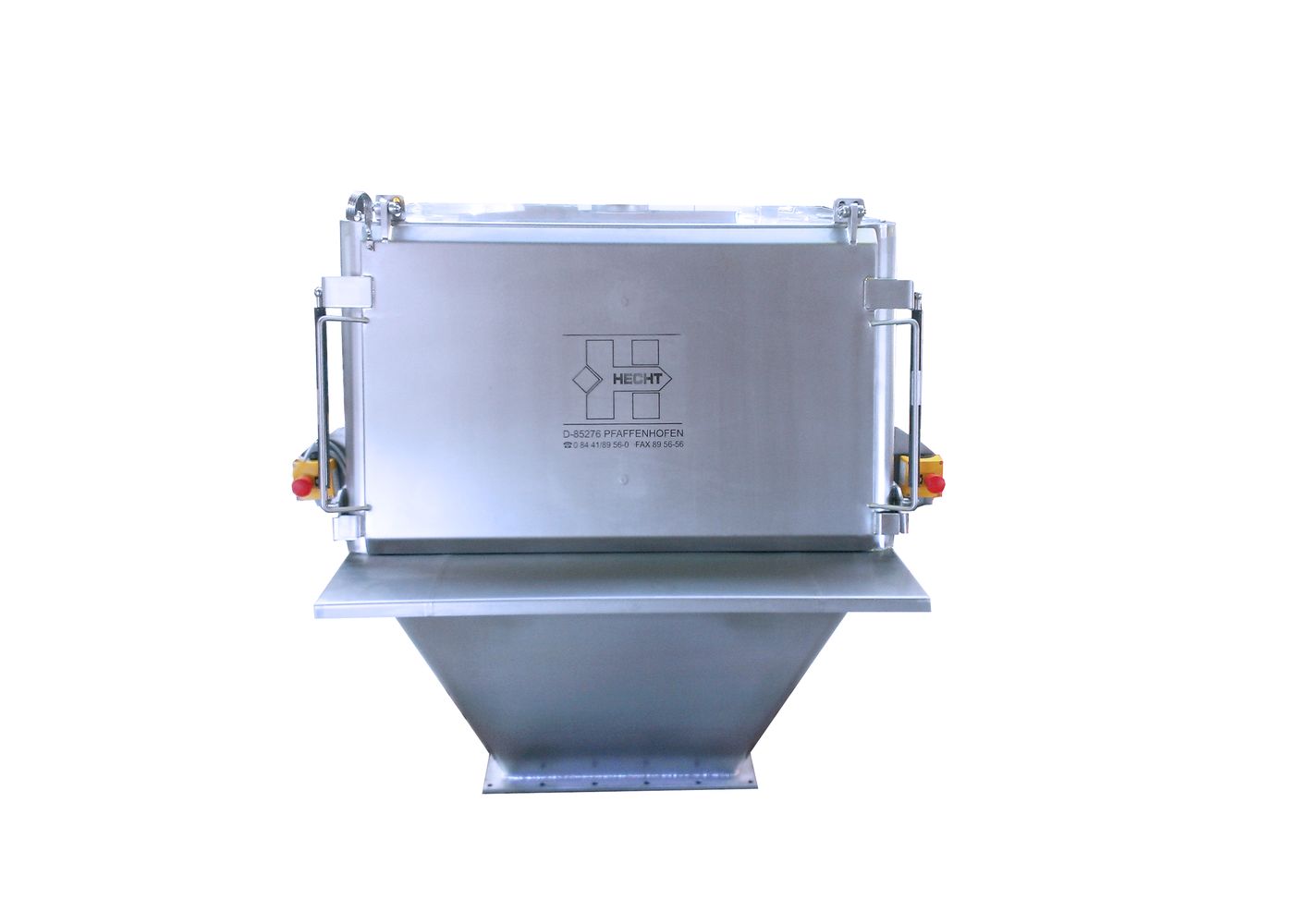

Sack Discharging Station SE-H

The SE-H is available as a basic model for on-site dedusting or with a top-mounted filter. The spacious hopper consists of a 260 litre product buffer. The large 50 mm x 50 mm screen can be easily changed without tools.

The SE-H discharge station is easy to use and offers a simple and cost-effective solution for a variety of tasks.

Its compact design allows it to be used where space is at a premium.

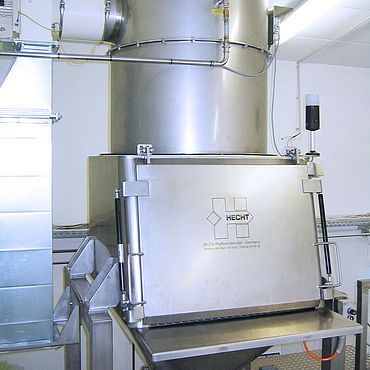

  • On top filter for an onside  dedusting as well as an onside dedusting with filters can be integrated
  • Easy to clean due to the open construction

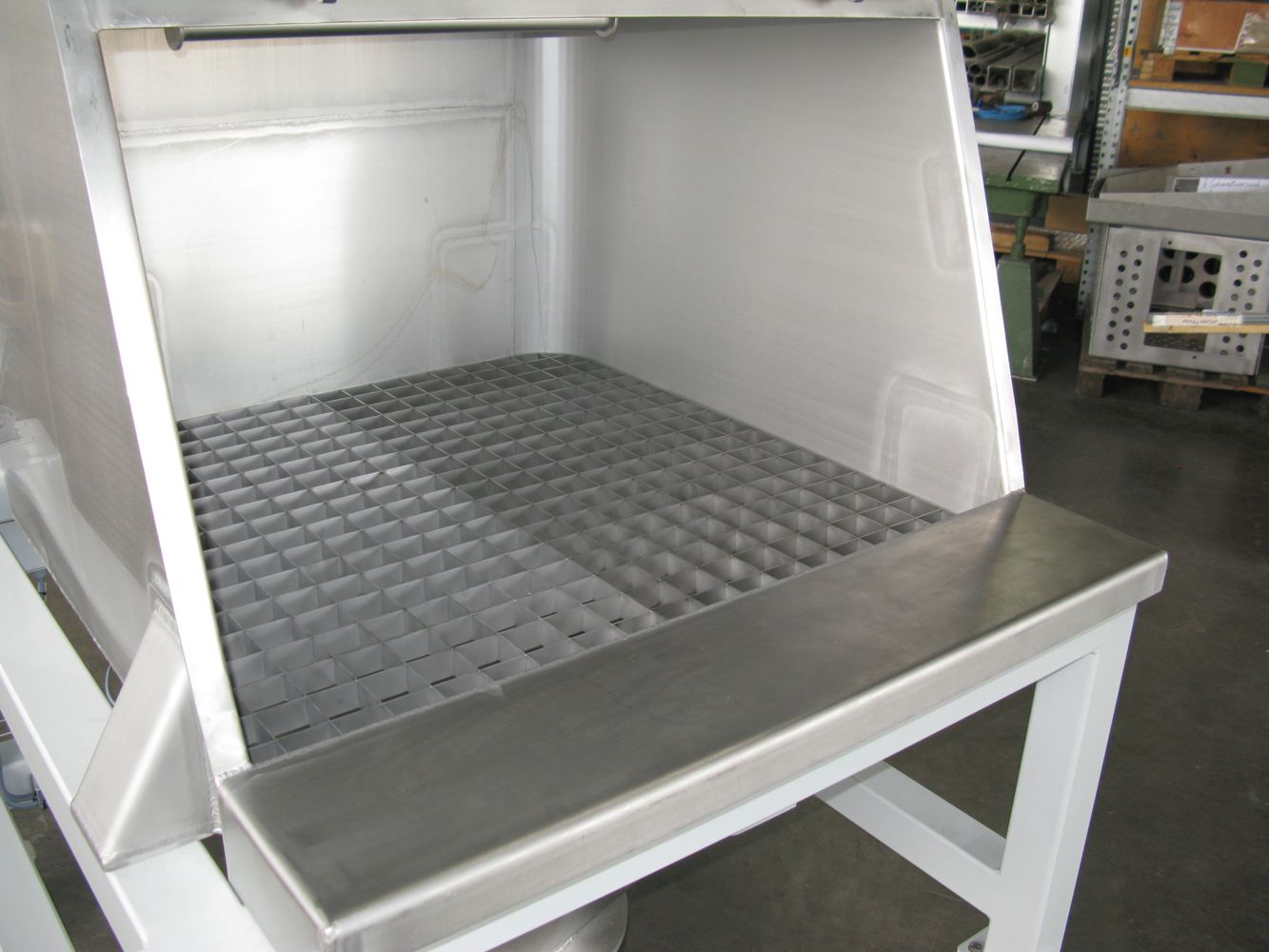

  • Easy and fast change of the grid
  • Basic an cost effective version
  • No training for operating
  • For confined space conditions
  • Several materials and surfaces to customized requirements

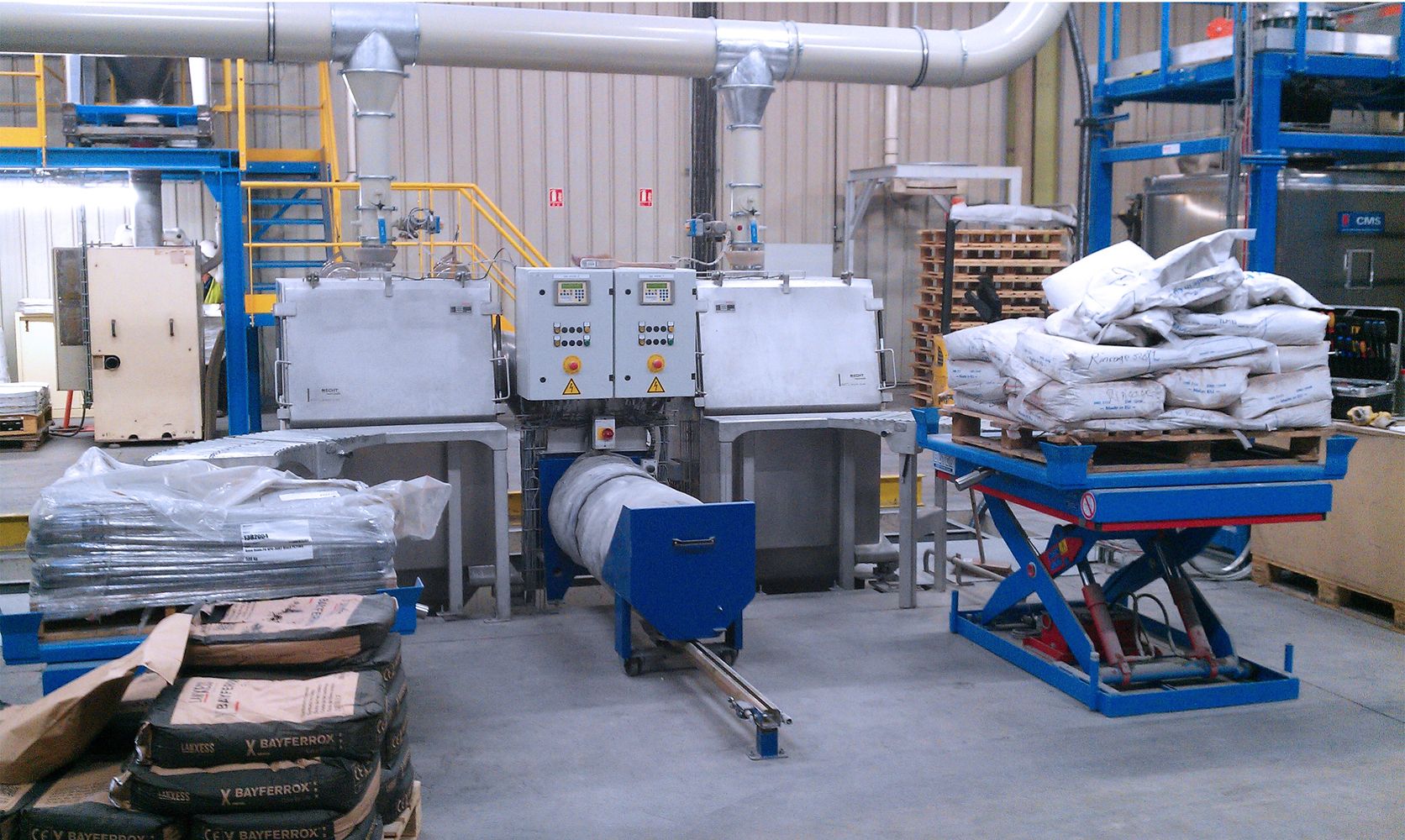

  • Lifting table for ergonomic handling optionally

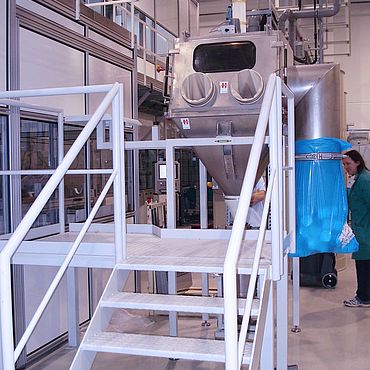

  • Customized versions for ATEX or in Hygienic Design on request
  • Empty suck chute or compactor optionally
  • Versions with machine feet or with fixed or swivel castors
  • Various sieve inserts
  • Operator provides sacks for discharge and activates the exhaust system
  • Front flap is opened
  • Sack is placed onto the support table and pushed into the discharge station
  • Sack is opened with a knife and emptied
  • Empty sack is removed from the discharge station
  • Optionally, empty sack can be disposed of via an empty-sack chute
  • After discharging all sacks, operator closes the front flap and switches off the exhaust system
  • Station can be wet cleaned if necessary
